| Product Code | 800 lb |

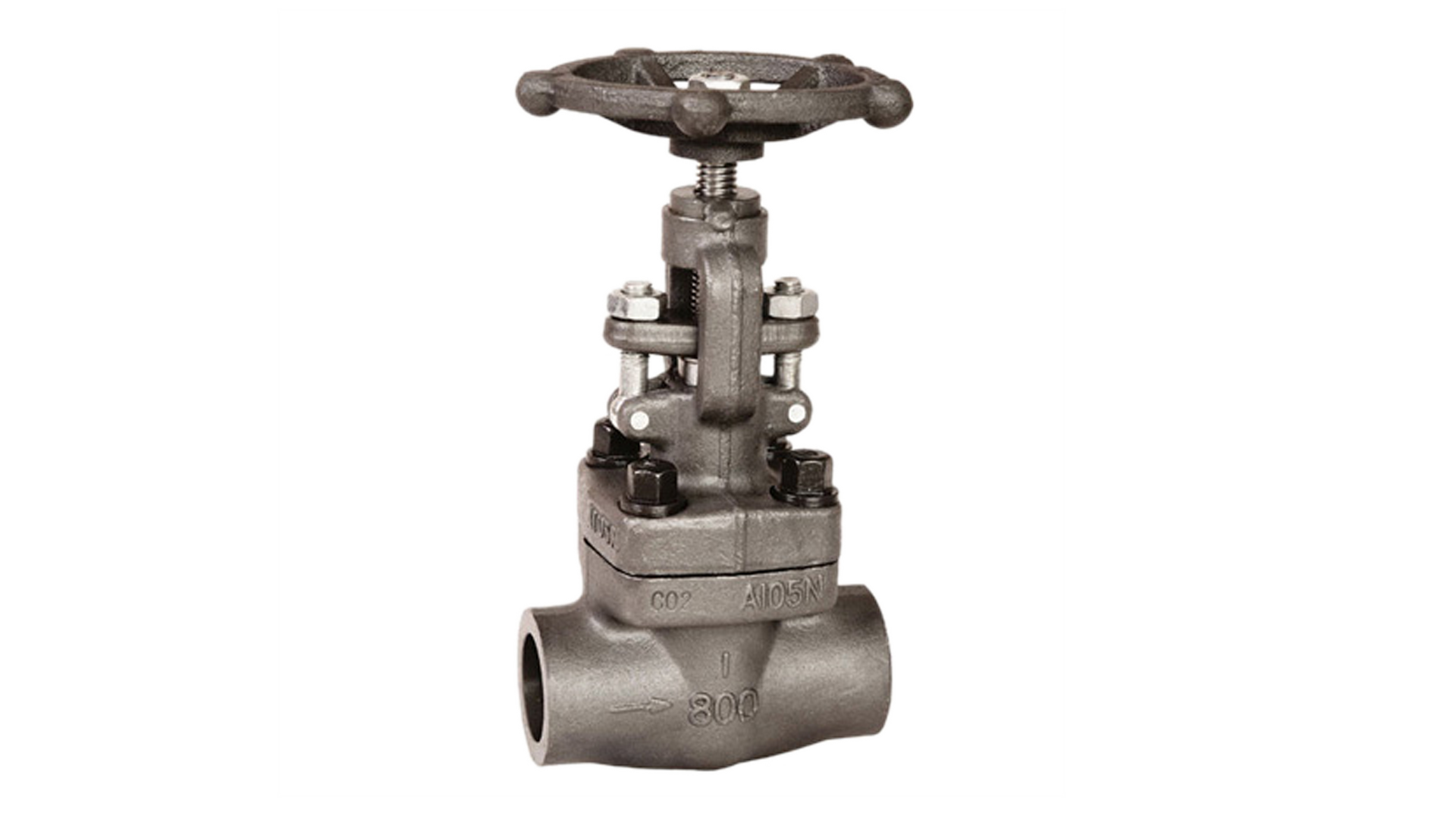

| Ürün Adı | 800 lb Globe Valve |
| Material Codes | A105 |
| Design | API 602 |
| Flange and Their Joints | ANSI B16.5 |
| Face to Face Dimensions | - |
| Tests | API 598 |
| Working Temprature | (-29 .... + 425) |

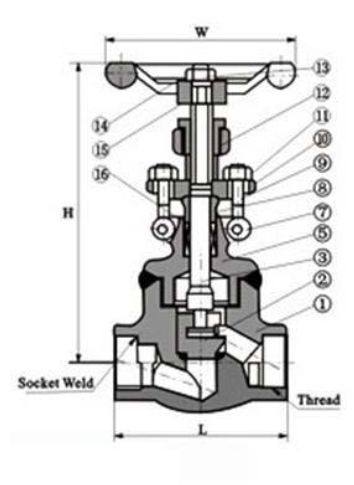

Parts
| No | Part | Material |
| 1 | Body | A105 |
| 2 | Disc | A276 420 |
| 3 | Stem | A276 410 |
| 4 | Gasket | SS304-Graphite |
| 5 | Bonnet Bolt | A105 |
| 6 | Bonnet Bot | A193 B7 |
| 7 | Pin | A276 410 |
| 8 | Gland | A276 410 |
| 9 | Gland Eyebolt | A193 B7 |
| 10 | Gland Flange | A105 |
| 11 | Gland Nut | A104 2H |
| 12 | Yoke Nut | A276 410 |
| 13 | H.W. Lock Nut | A194 2H |
| 14 | Nameplate | Aluminum |
| 15 | Handwheel | A47 |
| 16 | Stem packing | Flexible Graphite |
Sizes
| NPS | DN | L | H | W |
| 1/2" | 15 | 79 | 166 | 100 |
| 3/4" | 20 | 92 | 171 | 100 |
| 1" | 25 | 111 | 207 | 125 |
| 1 1/4" | 32 | 120 | 240 | 160 |
| 1 1/2" | 40 | 152 | 258 | 160 |
| 2" | 50 | 172 | 330 | 180 |
